About JUnit


JUnit is a testing framework for Java, mostly focused on unit testing.

It is also used for writing integration and acceptance tests, making use of other libraries such as Selenium.

JUnit was massively used by the Java community and thus, its XML test result reports have become a de facto standard for test result reporting.

JUnit XML reports may be created by many different testing frameworks for Java, JavaScript, Ruby, Python, or any other language.

JUnit Basic Concepts

In JUnit, you have Tests and (Test) Suites. A Suite is a way of aggregating a group of tests together, along with their results. This applies not just to the original Java’s JUnit but also for other implementations that generate the JUnit XML report.

In Java, Tests are created within a Test Case class which will contain the Tests, implemented as class methods (and properly annotated).

The Test Case classes may be grouped in Test Suites.

JUnit provides way more concepts (Test Runners, Test Fixtures, Categories, etc.) although they are not relevant in this context.

Importing JUnit XML reports

Xray supports Junit XML imports and you read more here.

Below is a simplified example of a JUnit XML report containing a Test Suite with one Test Case.

<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <testcase classname="some.class.name" name="Test1" time="123.345000"/>
    </testsuite>
</testsuites>

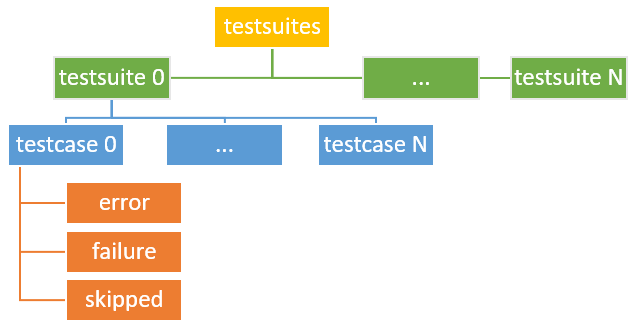

The simplified tags hierarchy of these reports can be represented in the following diagram:




Entities

JUnit’s Test Cases are identified by the pair of attributes “classname” and “name” attributes.

Test Cases are imported to Xray’s Generic Test issues, and the “classname” and “name” attributes are concatenated and mapped to the Generic Test Definition field of the Generic Test.

If a Test already exists with the same Generic Test Definition, then it is not created again.

The Summary of the each Test issue will be based on the "name" attribute of the "testcase" element.



Test Cases are imported to a new (or user-specified) Test Execution in the context of some project, along with their respective execution results.

JUnit’s Test Suites are not mapped to any special entity. However, the execution details screen will show the Test Suite related to a specific test result.

Status

The status of the Test Run will be set based on the Test Case result:


Test Cases

Test status

with failures (i.e. if <testcase> element contains an inner <failure> element; the text content of the element will be shown in the message)

FAIL

with errors (i.e. if <testcase> element contains an inner <error> element; the text content of the element will be shown in the message)

FAIL

skipped (i.e. if <testcase> element contains an inner <skipped> element; the text content of the element will be shown in the message)

TODO

without failures, errors, and that weren’t skipped

PASS


Note
: Test Cases with the status FAIL may have an error/failure message which can be seen in the Test Run screen, under the Results section.


If the same Test Case has been executed on multiple Test Suites, then the result for each Test Suite will be shown.


When a Test Case is executed in multiple Test Suites, the overall status of the Test Run will be calculated as a joint value.


Condition

Overall status of the Test Run

If all the mapped results of the Test Case was PASS

PASS

If any of the mapped results of the Test Case was FAIL

FAIL

Other cases

TODO

Notes and Limitations

  • attachments (e.g. screenshots and other files) are not supported/imported as they are not embedded in the XML report; it seems to be possible to add references to their local paths in the <system-out/> element but these cannot be imported as they are external to the report

Xray extended JUnit format

Test issue id/key

Two scenarios are supported to specify an existing test to import the JUnit test case to:

  • A test issue id is passed as a test_id property on the testcase element.
  • A test issue key is passed as a test_key property on the testcase element.

If both properties exist in a testcase, the test_id will be used. If the given test issue id or key does not exist, an error will be thrown.


<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <!-- no test explicitly specified, will try to be matched using the default generic test definition -->
        <testcase classname="some.class.name" name="Test1" requirement="CALC-123" time="123.345000"/>

        <testcase classname="some.class.name" name="Test2" time="123.345000">
            <properties>
                <!-- using a custom "test_id" property -->
                <property name="test_id" value="10001" />
            </properties>
        </testcase>

        <testcase classname="some.class.name" name="Test3" time="123.345000">
            <properties>
                <!-- using a custom "test_key" property -->
                <property name="test_key" value="CALC-123" />
            </properties>
        </testcase>
    </testsuite>
</testsuites>


Test requirements

Three scenarios are supported to link a test with requirements:

  • A requirement key is passed as a requirement attribute on the testcase element.
  • A requirement key is passed on a requirement property element inside the testcase element.
  • Multiple requirement keys are passed on a requirements property element inside the testcase element, separated by "," (comma).


<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <!-- using a custom "requirement" attribute -->
        <testcase classname="some.class.name" name="Test1" requirement="CALC-123" time="123.345000"/>

        <testcase classname="some.class.name" name="Test2" time="123.345000">
            <properties>
                <!-- using a custom "requirement" property -->
                <property name="requirement" value="CALC-123" />
            </properties>
        </testcase>

        <testcase classname="some.class.name" name="Test3" time="123.345000">
            <properties>
                <!-- using a custom "requirements" property -->
                <property name="requirements" value="CALC-123,CALC-456" />
            </properties>
        </testcase>
    </testsuite>
</testsuites>

Test summary

Use a test_summary property element inside the testcase element to explicitly set the issue summary. This summary will be used both to create or update the test.

If importing to a new test and the summary is not explicitly defined, it will default to the name attribute of the testcase.

<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <!-- if a new test, summary will default to "Test1" -->
        <!-- if an existing test, summary will stay as is -->
        <testcase classname="some.class.name" name="Test1" time="123.345000"/>

        <testcase classname="some.class.name" name="Test2" time="123.345000">
            <properties>
                <!-- if a new test, summary will be "A custom summary" -->
                <!-- if an existing test, summary will be updated to "A custom summary" -->
                <property name="test_summary" value="A custom summary" />
            </properties>
        </testcase>
    </testsuite>
</testsuites>


Test description

Use a test_description property element inside the testcase element to set the issue description. This description will be used both to create or update the test.

<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <testcase classname="some.class.name" name="Test1" time="123.345000">
            <properties>
                <property name="test_description">
                    <![CDATA[Some custom description for the test issue.]]>
                </property>
            </properties>
        </testcase>
    </testsuite>
</testsuites>


Test labels

Use a tags property element inside the testcase element to add labels to the issue. Multiple labels must be separated by "," (comma).

<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <testcase classname="some.class.name" name="Test1" time="123.345000">
            <properties>
                <property name="tags" value="label1,label2" />
            </properties>
        </testcase>
    </testsuite>
</testsuites>


Test run comment

Use a testrun_commentproperty element inside the testcase element to set the overall comment of the test run.

<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <testcase classname="some.class.name" name="Test1" time="123.345000">
            <property name="testrun_comment">
                <![CDATA[Lorem ipsum dolor sit amet,
consectetur adipiscing elit,
sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.]]>
            </property>
        </testcase>
    </testsuite>
</testsuites>



Test run evidence

Use a testrun_evidence property element inside the testcase element to add files as global evidence on the test run. Each evidence must be an item element inside the property, with the filename in the name attribute and with Base64 encoded content.

<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <testcase classname="some.class.name" name="Test1" time="123.345000">
            <property name="testrun_evidence">
                <item name="image1.png">iVBORw0KGgoAAAANSUhEUgAAADIAAAAyCAYAAAAeP4ixAAAAQ0lEQVR42u3PQREAAAgDINc/9Mzg14MGZNrOAxERERERERERERERERERERERERERERERERERERERERERERERERERuVh9TJWdbWjzsQAAAABJRU5ErkJggg==</item>
                <item name="image2.png">iVBORw0KGgoAAAANSUhEUgAAADIAAAAyCAYAAAAeP4ixAAAAQ0lEQVR42u3PQREAAAgDINc/9Mzg14MGZNrOAxERERERERERERERERERERERERERERERERERERERERERERERERERuVh9TJWdbWjzsQAAAABJRU5ErkJggg==</item>
            </property>
        </testcase>
    </testsuite>
</testsuites>


Test run custom fields

Two scenarios are supported to set test run custom fields:

  • Each custom field in a testrun_customfield property element inside the testcase element. The name of the custom field must appear after the "testrun_customfield:" prefix in the name attribute and the value should be in the value attribute.
  • Multiple custom fields in a testrun_customfields property element inside the testcase element. Each custom field should be an item element inside the property, with the custom field name in the name attribute and value in the element content.

In both scenarios, multiple select custom fields should have their values separated by ";" (semicolon).

<?xml version="1.0" ?>
<testsuites>
    <testsuite errors="0" failures="0" id="0" name="my test suite" tests="1">
        <testcase classname="some.class.name" name="Test1" time="123.345000">
            <property name="testrun_customfield:cf1" value="lorem ipsum" />
            <property name="testrun_customfield:cf2" value="option 1;option 2" /> <!-- multi select must have values separated by ";" -->
        </testcase>

        <testcase classname="some.class.name" name="Test2" time="123.345000">
            <properties>
                <property name="testrun_customfields">
                    <item name="cf1">
                        <![CDATA[lorem ipsum]]>
                    </item>
                    <item name="cf2">
                        <![CDATA[option 1;option 2]]> <!-- multi select must have values separated by ";" -->
                    </item>
                </property>
            </properties>
        </testcase>
    </testsuite>
</testsuites>
