Overview
In this article, we will describe how our tools help at different stages of establishing & improving the compliant QMS, using the PDCA cycle (Plan, Do, Check, Act) as the guideline.
Plan
This stage is about strategic design of the QMS structure and its processes. We will focus on a few popular universal standards, namely ISO 9001, 27001, and 31000.
ISO 9001
This standard sets out the criteria for a QMS and applies to the organizations engaged in design, development, production, and servicing of goods (i.e., to most software development organizations).
ISO 9001 is based on 7 quality management principles:
# | Title | Summary Statement |
1 | Customer focus | The primary focus of quality management is to meet customer requirements and to strive to exceed customer expectations. |
2 | Leadership | Leaders at all levels establish unity of purpose and direction and create conditions in which people are engaged in achieving the organization’s quality objectives. |
3 | Engagement of people | Competent, empowered, and engaged people at all levels throughout the organization are essential to enhance its capability to create and deliver value. |
4 | Process approach | Consistent results are achieved more effectively and efficiently when activities are managed as a coherent system. |
5 | Improvement | Successful organizations have an ongoing focus on improvement. |
6 | Evidence-based decision making | Decisions based on the analysis and evaluation of data and information are more likely to produce desired results. |
7 | Relationship management | For sustained success, an organization manages its relationships with interested parties, such as suppliers. |
In this article (this section and beyond), we will dive deeper into principles 3-6.
Engagement of people
There are two important components to this principle: empowerment/competence and collaboration.
When it comes to competence, it is essential to have documentation covering not just the basics, but also the nuances of the processes, tools, possible configurations and extensions/integrations, etc. Xray has plenty of self-paced resources (DC/Server, Cloud) to facilitate training, improve knowledge, and ensure seamless adoption. Besides the extensive user guide documentation available online, there are also many courses on Xray Academy to understand not only Xray essentials but also more advanced topics, such as test automation and optimized test design.
To facilitate collaboration and foster clarity, you can invite every team member to participate in quality-related tasks, removing friction that exists whenever different team roles use siloed tools:
- Artifacts can be shared in a variety of formats.
- Comments and evidence can be added to all Xray issue-based entities (e.g., Tests) and also to Test Runs.
Process approach and Improvement
The effectiveness of the quality management approach depends on how thoroughly it is integrated into all facets of your organization. Having the Atlassian ecosystem as the single source of truth significantly simplifies this process aspect.
Furthermore, Jira and Xray enable multiple customizations to adapt to the evolving organizational needs:
- Different deployment versions (Server/DC and Cloud) with the seamless connectivity between Jira and Xray
- Flexible ways for organizing your project related items (all-in-one vs testing entities separately)
- Different levels of objectives with traceability and quality gates
- Improved visibility into interrelated tasks with proper assignments and notifications
- Establish KPIs and quantifiably measure them
- add custom fields to any entity (e.g. probability, severity, performance thresholds)
- implement additional customizations (e.g., ScriptRunner, Automation for Jira)
- integrate with other Jira apps to widen the feature set provided by our tools
Evidence-based decision making
This principle is primarily enabled by detailed reports and formats that promote easier visibility and awareness. With Jira and Xray, you can export data in compliance-focused, human-readable formats and automate data snapshots.
All core entities, including Test Runs (i.e. results), can be exported to PDF, Word, or Excel, using fully customizable documents in terms of layout. This is a way to obtain a formal, readable copy of the relevant test data, no matter whether it is related to test specification or execution.
Two options exist to achieve this: either using the built-in Document Generator capabilities, or by using the more complete and flexible Xporter App.
With Xporter it is possible to automate the creation of these documents and, for example, generate them upon a transition of a workflow, or attach them to an existing Confluence page, or send them via email.
To consolidate the information from Jira and Xray, you can also use Jira Snapshots:
“Easy to make reports, diagnosis is quick and straightforward. The FDA submission requires specification reports and traceability reports. Jira Snapshots compiles these reports from the Jira and Xray data, avoiding burdening the team.”
ISO 27001
This standard establishes the requirements for an information security management system. ISO 27001 focuses primarily on maintaining the confidentiality, integrity, and availability of information:

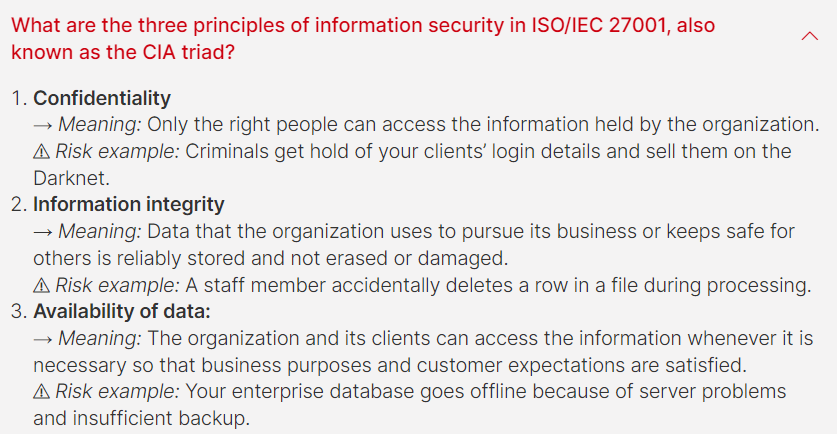

Confidentiality and Information integrity
To support confidentiality and information integrity principles, Jira and Xray allow you to:

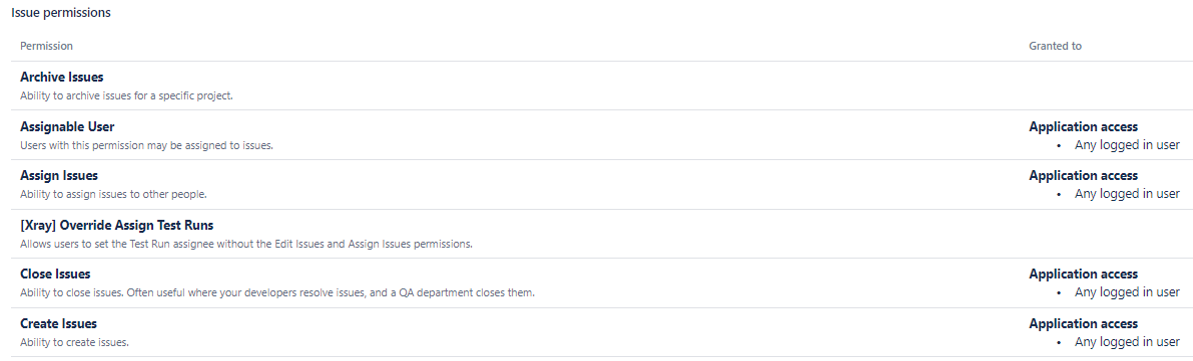

- Implement access control and permissions for any entity (i.e. Project, Story, Test Plan, Test Execution, etc.)
- Use e-signatures to track explicit approval
- Xray issue-based entities can all be digitally signed, using one of many available Jira apps for that purpose. This is a unique advantage as it provides full control over the core testing activities.
Atlassian is ISO 27001 certified. Xray holds a SOC 2 Type 2 certification.
Availability of data
With Xray, you can ensure data persistence without tampering, maintain history visibility, and track changes.

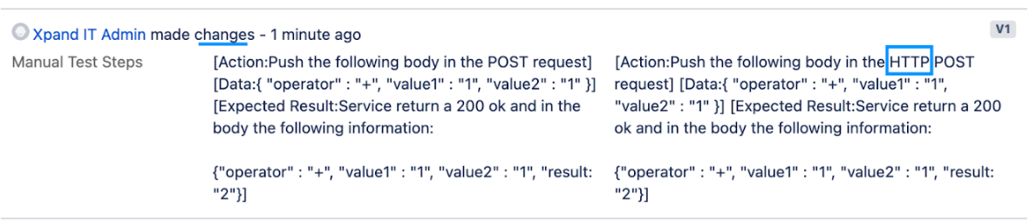

- In order to enable auditing and facilitate diagnosis, data must be stored, and changes, whenever applicable, need to be clearly identified. In Xray, all data is persisted and can be easily tracked using a historical timeline. You can even monitor individual test step modifications - if a step is changed, the record gets into the Xray Test History tab on the Test issue screen (under Activity).
- Historical results (i.e. Test Run details) cannot be modified. The same applies to past changes made on Jira issue-based entities.

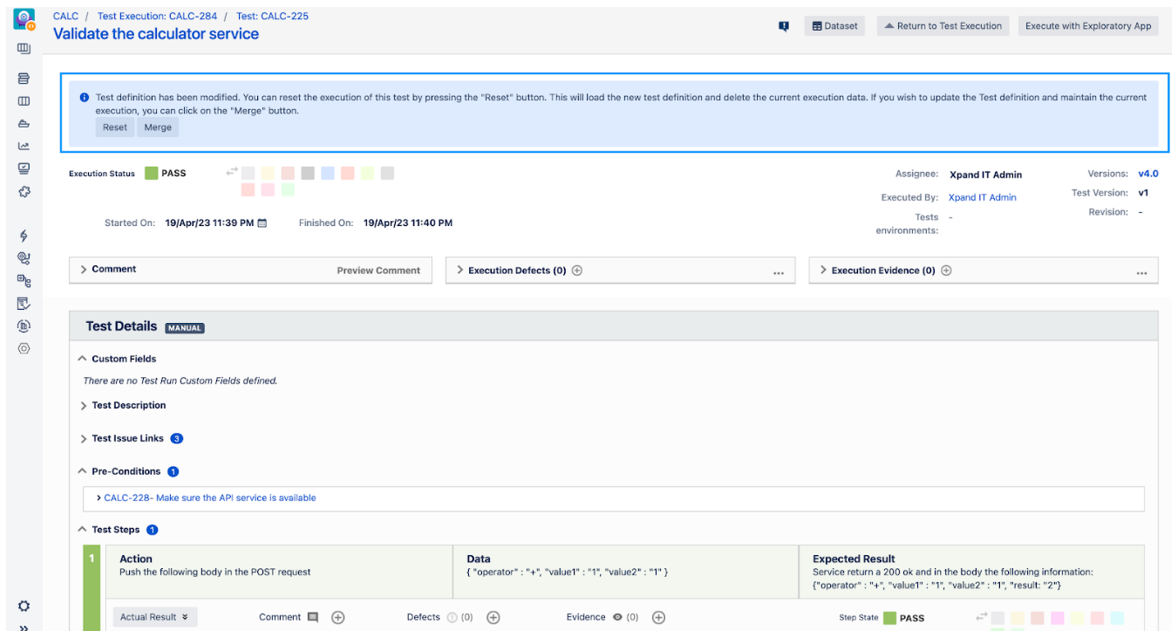

- If a Test changes, the recorded results don't. A warning appears in case the user is still allowed to rerun the test. If they are not allowed (because the Test Execution issue is resolved) then the execution cannot even be restarted.
SOC 2 is similar in its goals & controls and includes five Trust Services Criteria: Security, Availability, Processing Integrity, Confidentiality and Privacy. The features described above also align with the sample SOC2 checklists.
ISO 31000
This standard family sets the guidelines for engaging in Enterprise Risk Management (ERM). It provides guidance on how to identify, assess, treat, and communicate risks.
ISO 31000 cannot be used for certification purposes directly. But organizations can compare their risk management practices with an internationally recognized benchmark, providing sound principles for effective management and corporate governance.
Risk definition & mitigation
ISO 31000 defines risk as the “effect of uncertainty on objectives”. There are three key concepts:
- Potential event
- Probability of that event occurring
- The resulting severity of the outcome, should the event occur
In line with the improvement principle of ISO 9001, ISO 31000 puts great emphasis on the iterative nature of risk management, drawing on new knowledge and analysis for the revision of actions and controls at each stage of the process.
It would be near impossible to successfully implement and sustain the ISO 31000 risk management standard if an organization’s process is heavily dependent on paper-based communication and record keeping.
In Jira and Xray, you can have the ability to:
- manage risks (e.g., create, edit, delete) and track their status
- classify risks by impact, probability, and other user-defined fields
We will dive deeper into this topic when discussing the ISO 26262 standard later on.
Do, Check, Act
The Do stage of PDCA is more about the tactical implementation of the QMS. Check and Act stages detail how the quantified results are processed. The goals are to determine the effectiveness and efficiency of each process toward its objectives, to communicate these findings to the stakeholders, and to develop new best practices based on the audit.
As these stages build on top of the strategic design one described above, we will focus more on the unique aspects and “hands-on” examples. We will review the popular standards specific to the automotive sector, namely IATF 16949, ISO 26262, and ASPICE, to more closely analyze the requirements to achieve compliance.
For the examples from the medical sphere, please refer to the success cases from Caris Life Sciences and MyndTec as well as this webinar.
IATF 16949
This standard is an ISO 9001 interpretation agreed upon by major American and European automotive manufacturers. It focuses on the avoidance of errors (not on the discovery) and defines the requirements for the development, production, and installation of automotive-related products. It is more about hardware, while ASPICE covers software.
IATF 16949 is an independent QMS standard that is fully aligned with the structure and requirements of ISO 9001. Therefore, the IATF 16949 cannot be implemented alone - it must be implemented as a supplement and in conjunction with ISO 9001.
The Jira+Xray capabilities supporting ISO 9001 (described above) can also facilitate core tools from the automotive industry mentioned in IATF 16949, such as:
- Advanced Product Quality Planning (APQP)
- Failure Mode and Effects Analysis (FMEA)
- Statistical Process Control (SPC)
- Measurement Systems Analysis (MSA)
- Production Part Approval Process (PPAP)
ISO 26262
The standard covers functional safety in the automotive industry and provides the definition as “the absence of unreasonable risk due to hazards caused by malfunctioning behavior of electrical/electronic systems”. The standard covers the entire lifecycle of a safety-related system and outlines a risk-based approach to developing and implementing such systems in road vehicles.
There is some overlap between ISO 26262 and ASPICE. ISO 26262 does require that the software development is conducted in accordance with a defined process, and ASPICE can provide a framework for meeting this requirement.
There are two types of errors mentioned:
Random errors: They follow a probability distribution, so we can estimate and plan for them. Various safety analysis methods listed in ISO 26262 (FMEA, FMEDA, DFA, etc.) are the primary mechanisms to control this error type.
Systematic errors: Failures related in a deterministic way to a certain cause. They can only be eliminated by a change of the design or of the manufacturing process, operational procedures, documentation or other relevant factors. Process control measures in both ISO 26262 and ASPICE, which Xray facilitates, help make sure these errors are mitigated throughout the development process.
The access controls and the data integrity measures mentioned previously enable efficiency and transparency in the Verification and Validation processes covered by this standard. We will focus on the Verification level here and talk more about Validation in the ASPICE section.
Requirements
Define what a requirement is and its relevant metrics
Xray provides multiple levels of requirements and different ways to define the hierarchical relationship (e.g., using issue links, sub-tasks).
So, you can reflect the ISO 26262 and ASPICE model for documenting the system (both hardware and software) requirements in a way that clearly reflects the scope, dependencies, status, etc. For this example, let’s assume we are working with an Automated Driving System, here is how a few requirements for it could be arranged:

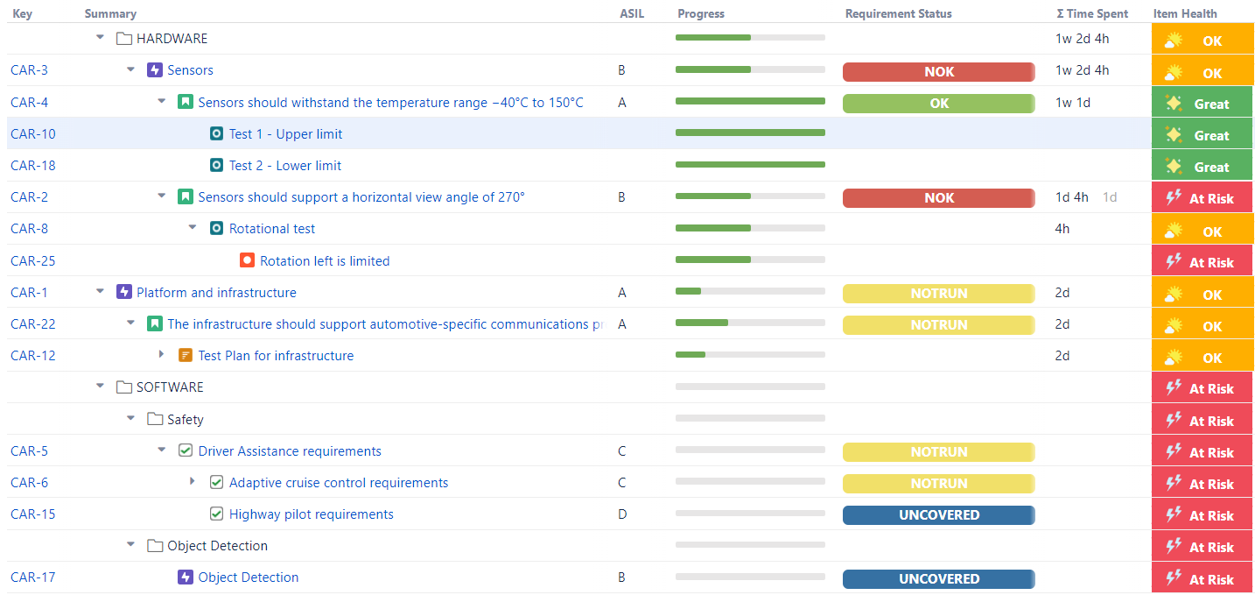

The hierarchical view is achieved with the Structure add-on for Jira

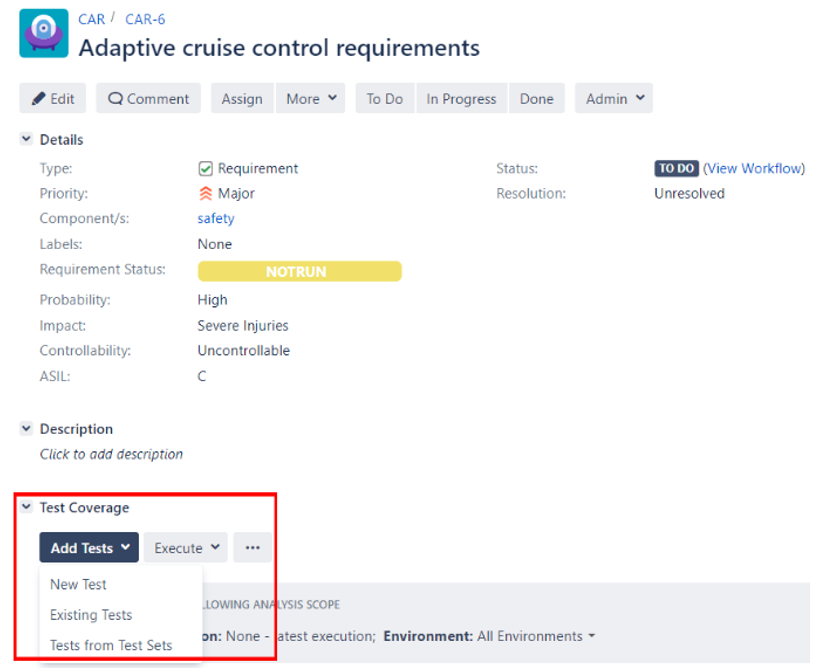

We can capture and track key pieces of information, both in structured (custom fields) and unstructured (description, attachments, mockup links, etc.) formats. Specifically, we can track industry-specific Components and compliance-related aspects like Automotive Safety Integrity Levels (ASILs) and their parts:
ASIL = Impact x (Probability x Controllability). Although the definition of risk in ISO 31000 is slightly different, these 3 key concepts are still largely applicable for that standard as well.
We could then classify the requirement entities by ASIL directly, or just impact, or any other user-defined field.
Proper risk management
Handling risks is an intrinsic part of good testing and is essential to organizations that work in highly regulated environments. Xray supports Risk-Based Testing (RBT) and allows you to define risks at different levels: project, requirement, or test.

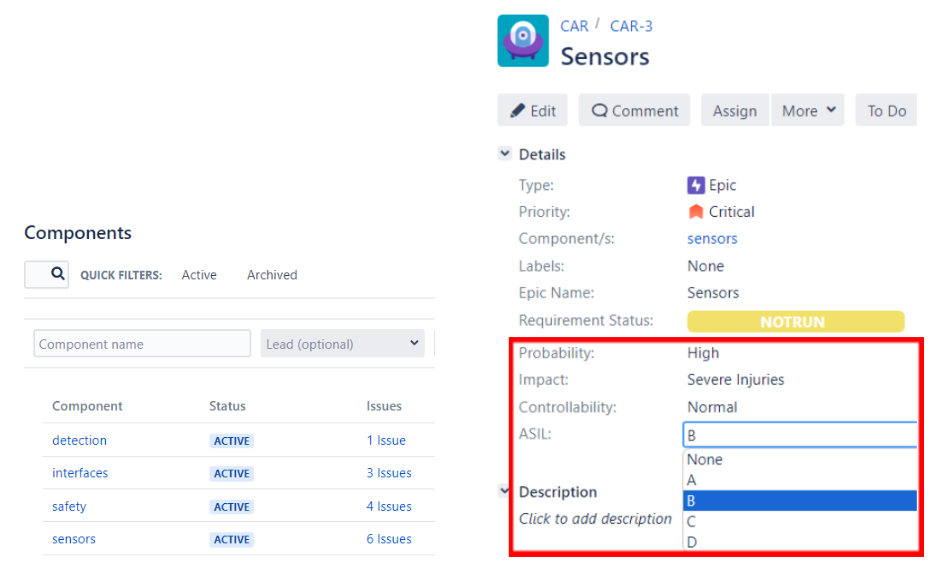

We have already set up the ASIL and related values to match ISO 26262 at the requirement/story level. We can choose to maintain the same level of detail at the test level or do a more customized risk assessment - e.g., combining ASIL with complexity for an aggregate Risk Score metric:
You can not only add tests to the execution based on risk values in filters, but also prioritize the execution order accordingly.
If you decide to prioritize the same metrics between requirements and tests, you can set up the rules for inheriting using Jira Automation, so that you don’t need to set the values manually for each entity.
Implement workflows to have explicit control over the process
Ensure issues get done by assigning them to users and tracking them using workflows. ISO 26262 requires different verification and approval activities depending on the testing type, so the ability to customize is critical. To elaborate on the list we mentioned in the Process section of ISO 9001, with Jira and Xray it is possible to:
- implement an approval mechanism, commonly having one approver
- Implement quality gates based on field status (see the nuances below)
- make items "read-only" when transitioned to a certain workflow status by setting a Jira property ("jira.issue.editable")
- restrict usage of Tests in a certain workflow status (see how)
- disallow executions for Test Executions in a specific status (see how)
Learn more in Using Jira workflows for testing purpose.
To be clear, Xray doesn't have an explicit feature for “quality gates”. However, Xray does have mechanisms to implement quality-related checks, mostly acting at the workflow status.
Examples leveraging ScriptRunner include:
- validating a requirement/story based on their coverage status, before allowing to make a transition
- reopening/transitioning linked Tests to a requirement
- whenever you change the specification of a requirement, you most probably will need to review the Tests that you have already specified.
- inhibiting transition of the Test Plan workflow status, unless all tests or a certain % are passing
- can be accomplished with the combination of ScripRunner and Xray REST API or custom field
Coverage and traceability
Guarantee requirements coverage

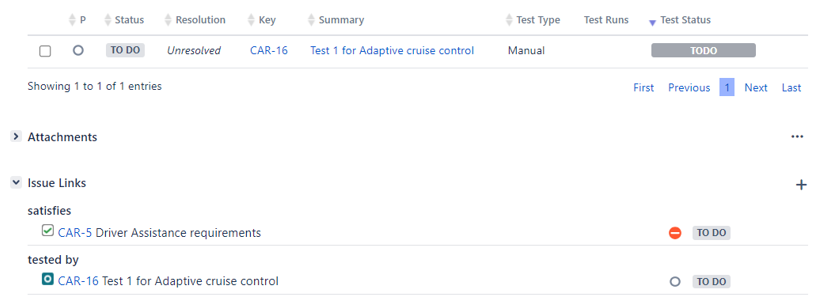

Epic and Story issues, common in Agile environments, can be covered by creating tests and tracking coverage directly from Jira. From the user story issue screen you can immediately create a Test. It is also easy to go back to the user story, using the issue link that was created automatically between the Test and the user story.

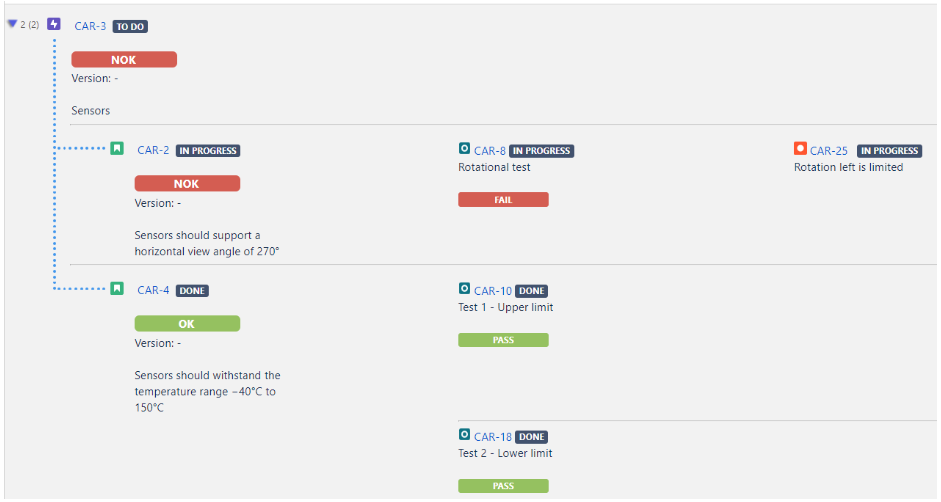

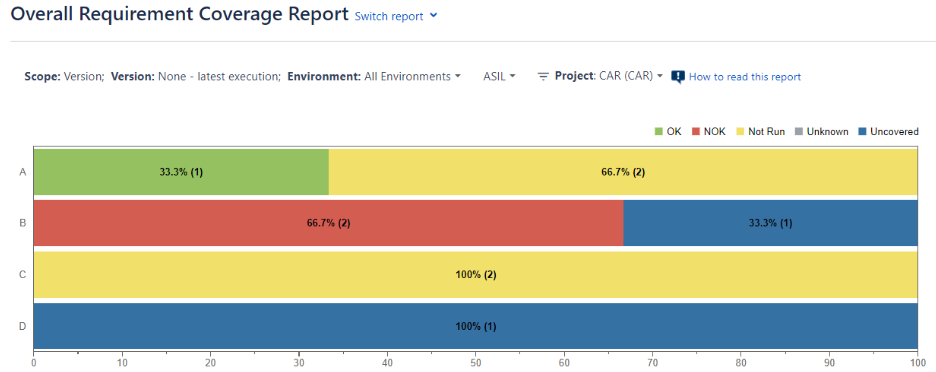

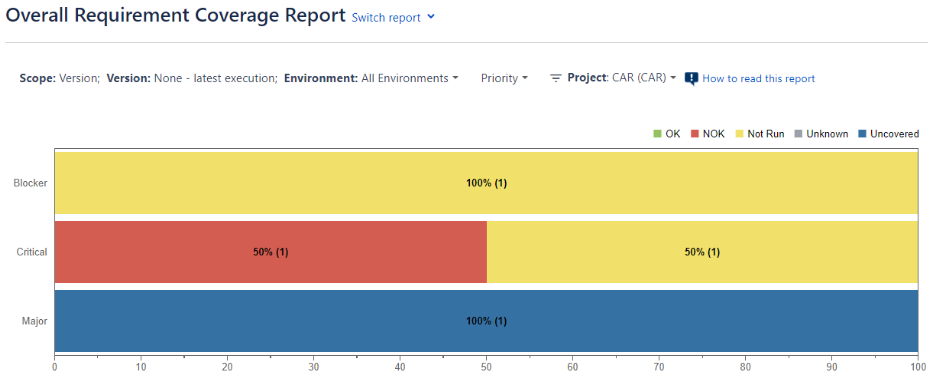

Within the Test Coverage Report, you can have a birds-eye view of quality status of your requirements, based on the tests that cover them and their results. To ease your analysis, you can group stories by specific metrics; for example, by risk level. That way you can have a better understanding of whether a higher priority issue is ready to be released or not.
Coverage information is updated in real-time and is multidimensional. In other words, we can analyze requirements from different perspectives: risk level, priority, version, environment, etc.
Enable audit visibility with full traceability
Xray helps answer the compliance questions by providing an overview of the status of deliverables. It provides full traceability between requirements, tests, their runs, and reported defects, including not just the relationship, but also the status of each entity.
Xray implements its test management capabilities using Jira issues. This means that all the activity logs and history are actually managed by Jira. We can even look at the code of the requirements to facilitate analysis as Jira can connect to development tools. Traceability can be evaluated for a specific context (version, environment, etc.) which helps with more precise auditing and diagnosing the impact.
Another useful report, right in Jira, is the Traceability Report. We can analyze our Epics, child Story issues, show the Tests that cover them, along with the reported results and, hopefully not many, defects that may have been found. If the user story is part of an Epic, the corresponding panel from the Traceability Report will automatically show all the Tests that validate the child stories and will provide a quick overview of the Epic status, making it easier to decide whether it can be released or not.
You can also handle reports focused on custom metrics. For example, one of the items for ISO 26262 compliance is estimating random failure rates over the lifetime of the device (Failure Rate= R/T, where R is the number of failures and T is total time). You can start by customizing a template (from scratch or from the template store) to fit your compliance requirements, with all the data to be embedded, logos, and other information (e.g., legal disclaimers). Then Xporter can use a JQL function to get a list of defect-type issues and perform the count on it (or you can consider this snippet option which is a bit trickier).
ASPICE
The abbreviation stands for “Automotive Software Process Improvement and Capability dEtermination”. It is a domain-specific variant of the international standard ISO/IEC 15504. The underlying SPICE framework is based on the ISO/IEC 12207 software development standard and is tailored specifically to the needs of the automotive industry. In general, ASPICE builds on the V-Model of software development.
The ASPICE framework consists of a process reference model, a process assessment model, and a process capability model. The process reference model defines a set of processes that are relevant to automotive software development, while the process assessment model provides a method for evaluating the maturity of these processes within an organization. The process capability model provides a way to measure and compare the capability of organizations in the automotive supply chain.
Given the overlap mentioned, we are going to focus on the aspects we didn’t cover in the ISO 26262 section, specifically the process reference model and its validation/testing aspects.
Testing techniques

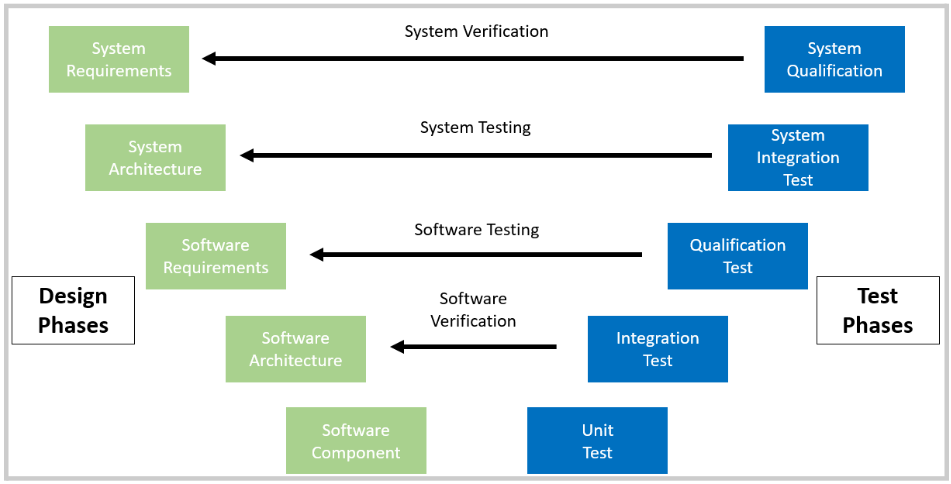

For the testing side of the ASPICE model, given the complexity of modern enterprises, all types of testing are necessary, with efficient coordination between them. No matter which approaches teams choose or the tools they prefer for test automation and CI/CD goals, it is essential to enable all of them in a frictionless way. And our suite of tools is flexible enough to do that.
Xray supports the full arsenal of techniques:
- Manual tests, including parameterized ones aligned with the dataset.
- Automated tests (Cucumber, including data-driven outline, and others)
- Exploratory testing using a desktop Xray Exploratory App (XEA).
So far, we have talked about mitigating risk by evaluating the criticality of each requirement and guaranteeing its coverage with tests. But you can also “fortify” another angle - the coverage of important data interactions within your systems.

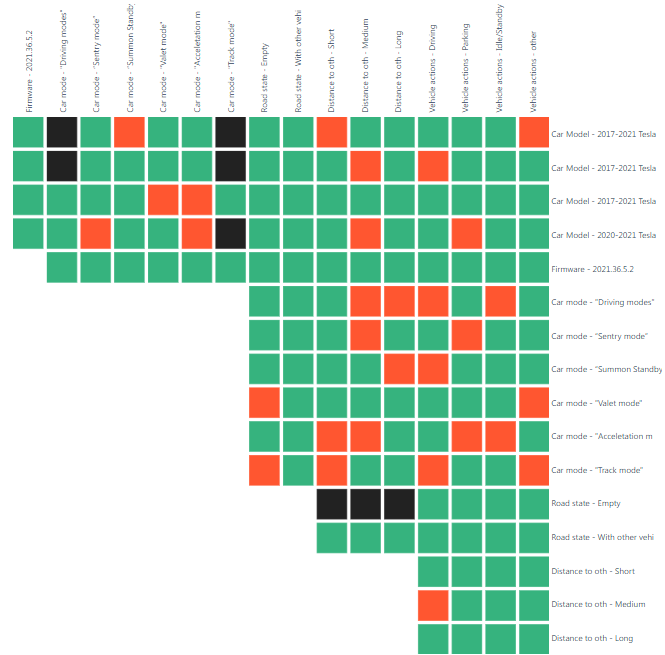

That can be achieved with the optimized scenario generation facilitated by Test Case Designer (TCD; part of Xray Enterprise). Its combinatorial, model-based methodology is based on the research results about the causes of defects in production (e.g. such studies as “Estimating t-Way Fault Profile Evolution During Testing” and “Practical Combinatorial Testing”, presented by the National Institute of Standards and Technology in 2017 and 2010 respectively). It is one of the suggested techniques in ISO/IEC/IEEE 29119:4 and also allows risk-based fine tuning at the parameter level.
"Challenging Autonomy with Combinatorial Testing (CACTus) may be used by practitioners to exercise systems as part of efforts to obtain compliance with standards like ISO 21448 or UL 4600."
Execution
Once the test suite is established, you can launch the execution directly from Jira (for both manual and automated types). Regardless of the testing approach or execution type, Xray can provide visibility of testing results, including evidence, in one place for faster feedback loops.
Whenever manually executing scripted test cases, we can report results at the step level, and attach screenshots as evidence which accelerates collaboration & defect triaging process.

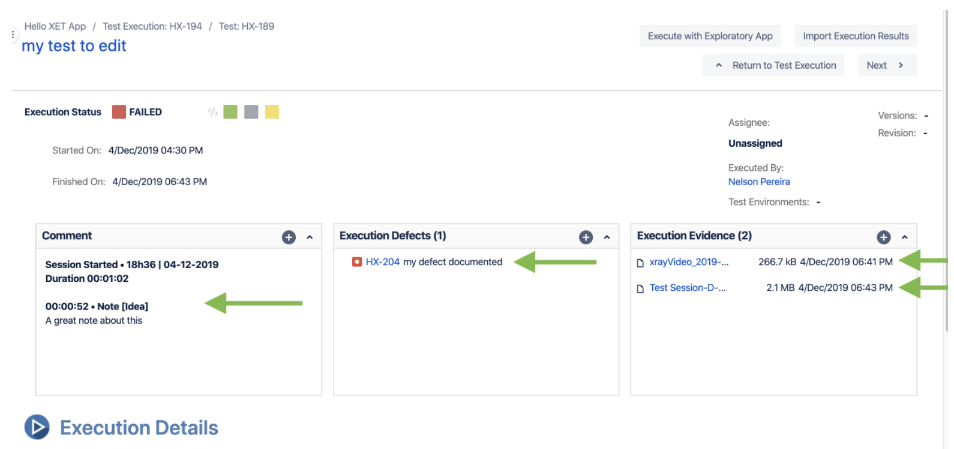

XEA can integrate with Xray to bring the best of both worlds: have exploratory testing evidence tracked in Jira, be accessible by the team, and reflect on the related requirements.

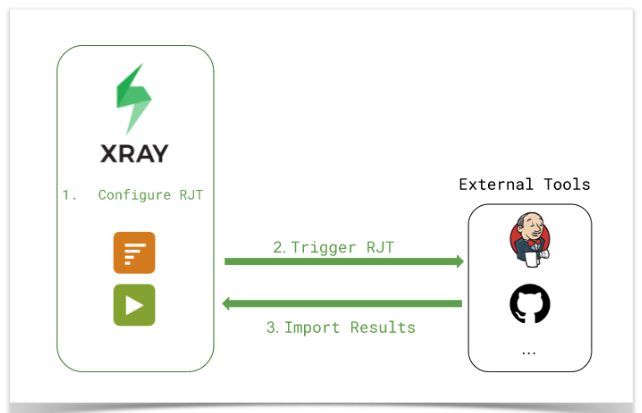

In Agile and DevOps teams, it is also especially important to enable adoption of any test automation tool/library and CI/CD tool. With the new feature - Remote Jobs Triggering - you can launch the pipeline action directly from the Test Execution issue. Then, detailed results from the automation framework can be imported to Xray and tracked consistently with other tests. You can take it a step further and link test code to requirements.

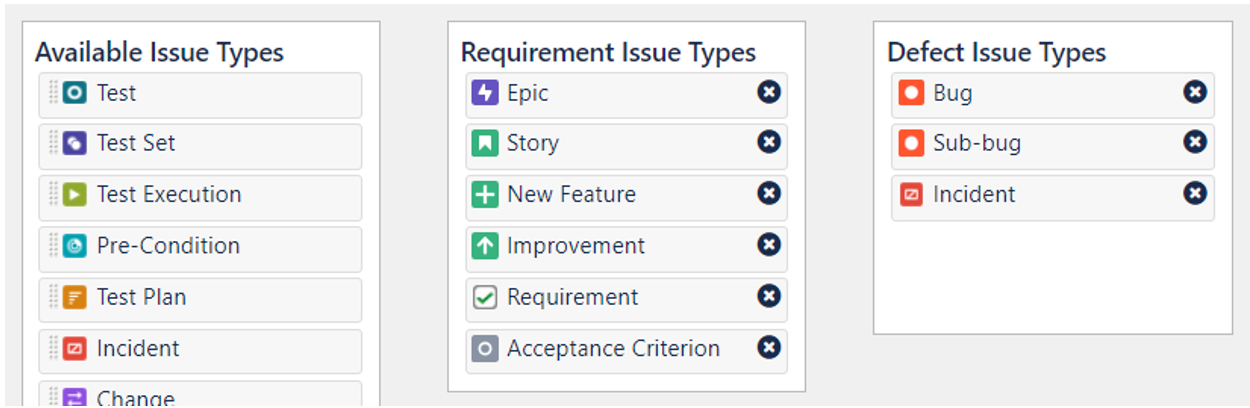

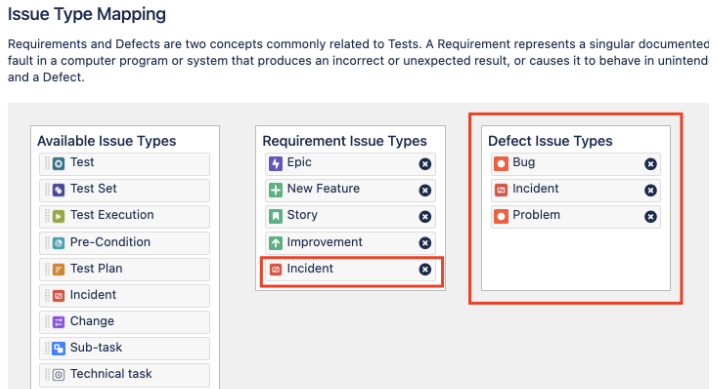

Lastly, in Xray it is possible to define several different issue types to be handled as "defects." That makes them easier to distinguish and manage - they can be classified (similar to other entities) by priority, severity, impact, and user-defined fields. They can also be covered explicitly with tests.
A few other relevant automotive standards that we can help with are:
- SOTIF (ISO/PAS 21448)
- ISO 21434
- UL 4600
- IEEE 29119
