Xray allows Project Managers to configure remote jobs triggers and their availability.

Configuration page

Under "Project settings" page, a new option is available on "Xray Settings" group, named "Remote Jobs Trigger"

Create configuration

A project manager can create up to 10 CI/CD configurations and from those select 6 that would be available on the Test Execution/Test Plan issue type.

Access "Remote Jobs Trigger" option on Project settings:

Select the desired CI/CD platform to use by selecting "Enable..." configuration on the right. This step is needed only once and you can have only one CI/CD tool selected at a given time.

Click the option to create a new configuration:

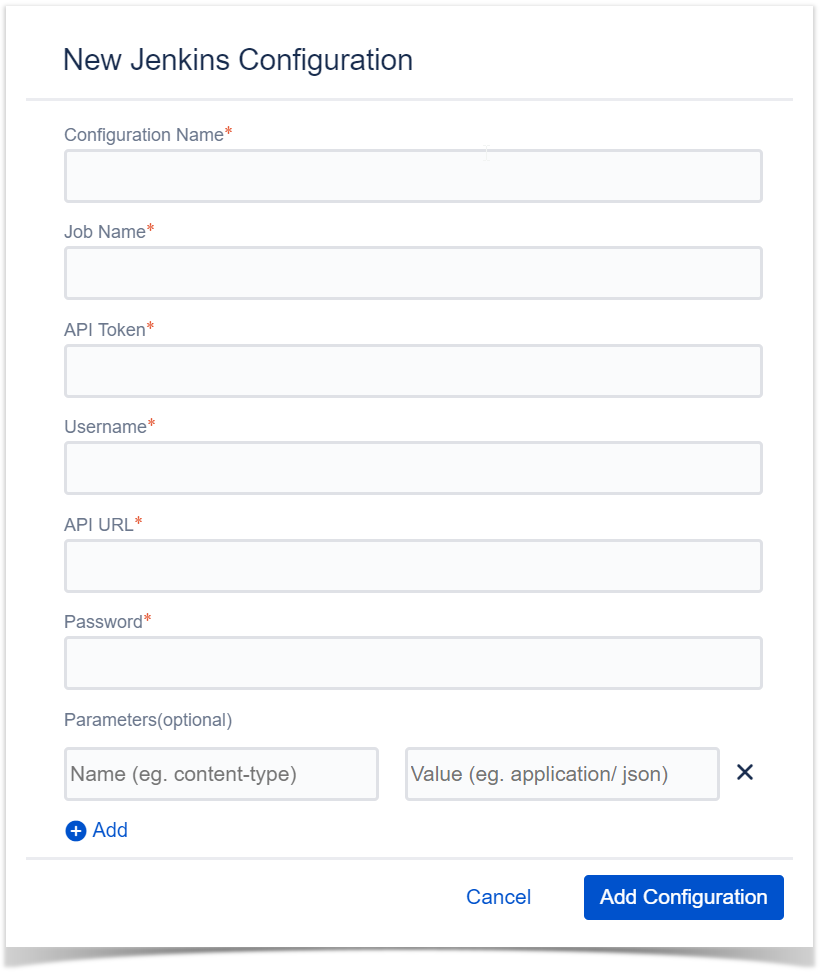

The new configuration screen will be displayed and you can fill in the input field regarding your CI/CD platform.

Be aware that the fields may differ according to the CI/CD platform selected but there are a few that are mandatory and cross CI/CD platforms:

  • Configuration Name (Mandatory) - Name of the configuration, this is the reference that will be used on Test Plan/Test Execution on the "Trigger Build" option;
  • Job Name/Plan Key/Workflow Id/Project Id/Pipeline Id (Mandatory) - This is your reference for the the build project on your CI/CD;
  • Parameters (optional) - Key/value parameters that you might have defined on your build and you want to pass from Xray.
    You may also use the following options to add to the parameter value regarding Xray entities:
    • ${ISSUE_KEY} - this will be replaced with issue key that user is triggering the build from;
    • ${TESTS_KEY} - this value will then be replaced with a comma separated string of test keys part of the issue the user is triggering the build from;
    • ${PROJECT_KEY} - this value will then be replaced with project key;
    • ${USER} - this value will then be replaced with logged user triggering the build.



Mandatory fields

Type of fields Available

Available step fields:

Actions available

Custom fields can be:

Limit of Fields

Impact of configuration changes on existing executions of Tests

Please be aware that a change on a custom field that is being used in a Test already being executed may request an action to reset or merge the test definition: Updating the definition of the Test after execution started
