Specific Fields

 A Test Execution has the following custom fields:

• Begin Date - the date the Test Execution is planned to start
• End Date - the date the Test Execution is planned to end
• Revision - the current source code and documentation version used in the Test Execution
• Test Environments - environments in which the Test Run is executed

These custom fields are located in the native Jira sections. The revision can be found in the Details section of the Test Execution issue while the Begin and End dates are located in the Dates section.

Test Execution dedicated sections

Xray contributes an additional section to the Test Execution view issue screen.

Tests Section

The Tests section provides the following views:

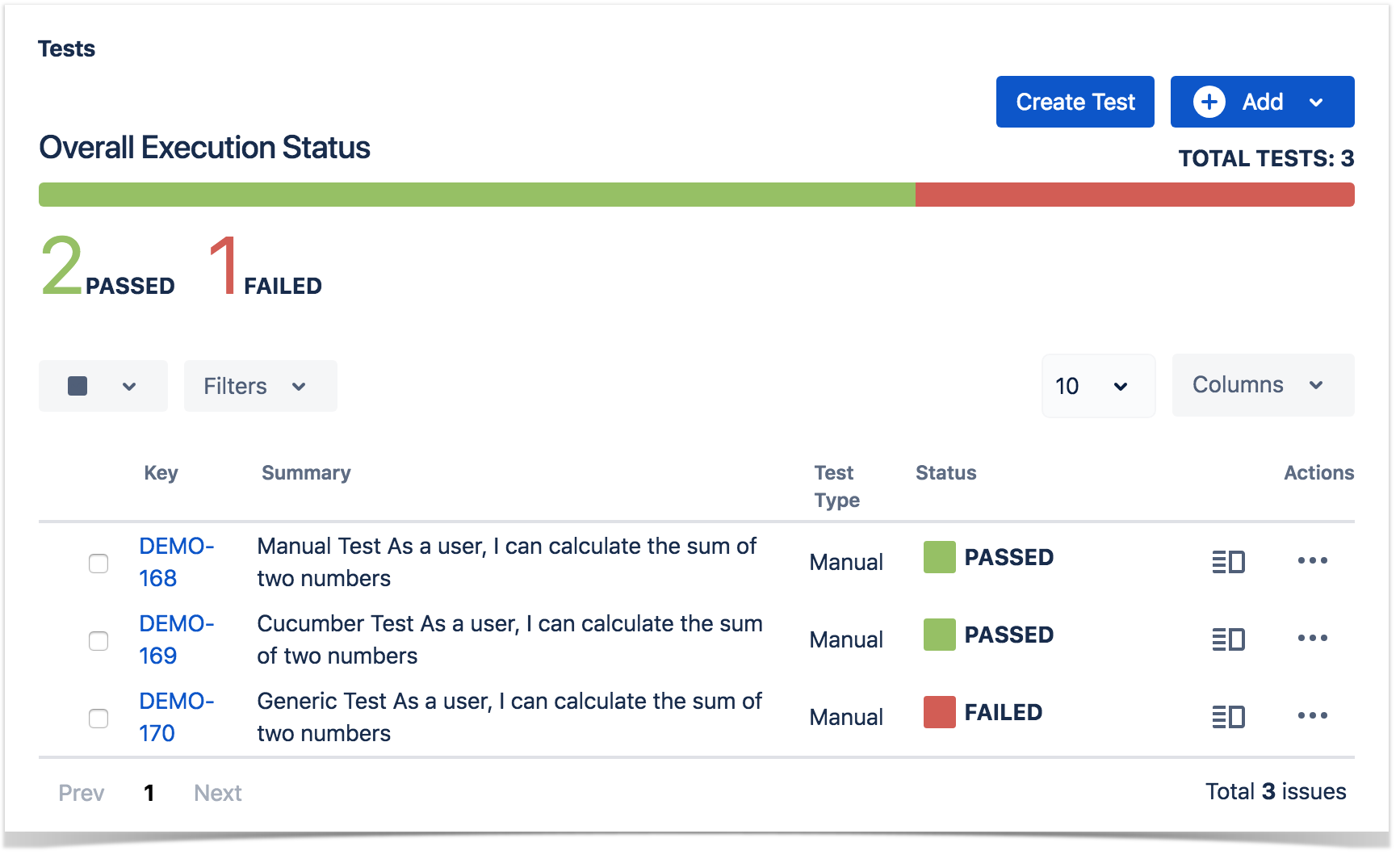

Overall Execution Status

This view has a colored progress bar where you can clearly see the status of a Test Execution. Final statuses float to the left side; the last status color to appear is the TODO status.

It is possible to filter tests by status in Test Execution Progress Bar as shown in the image below:

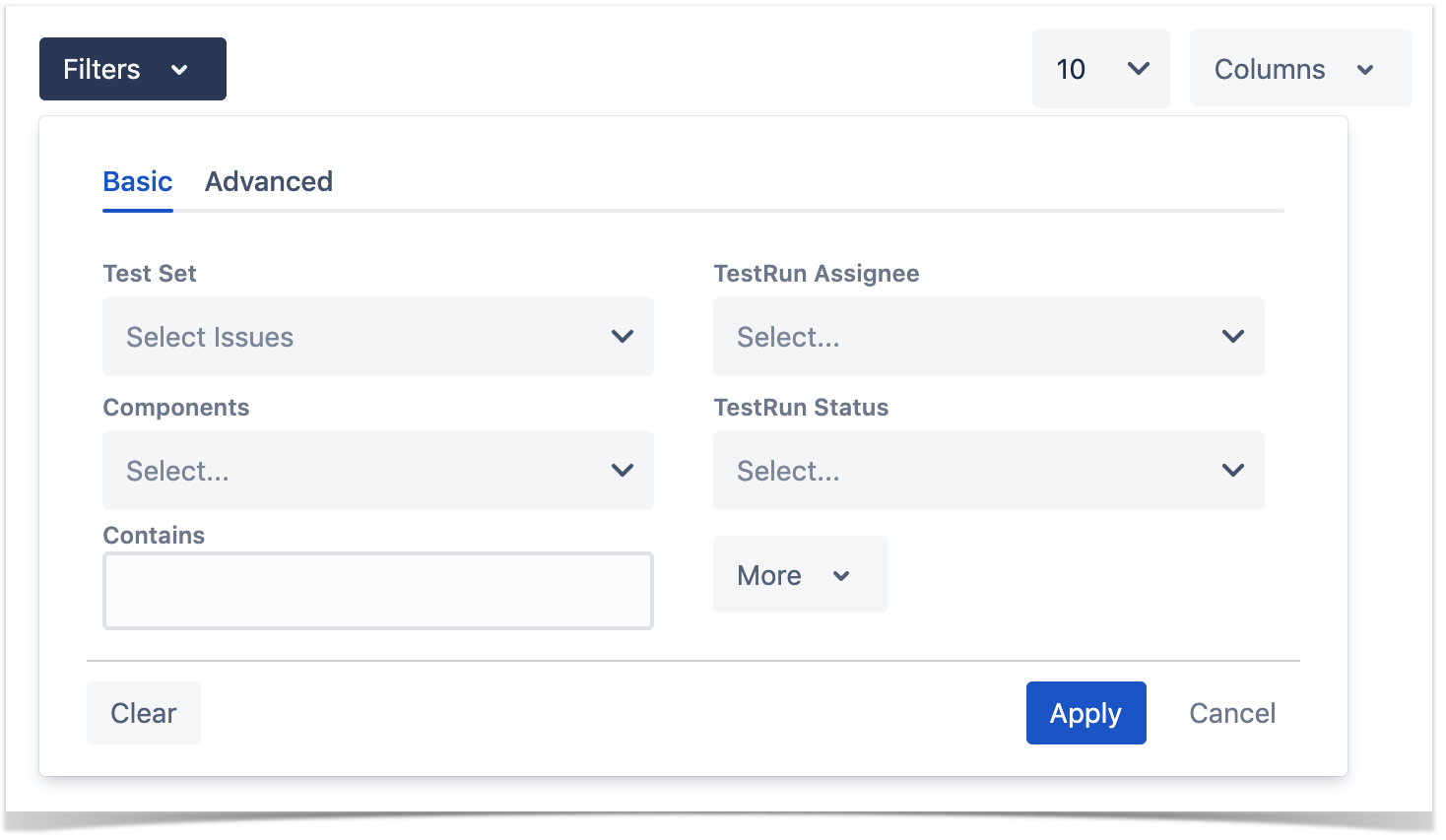

Test Run Filters

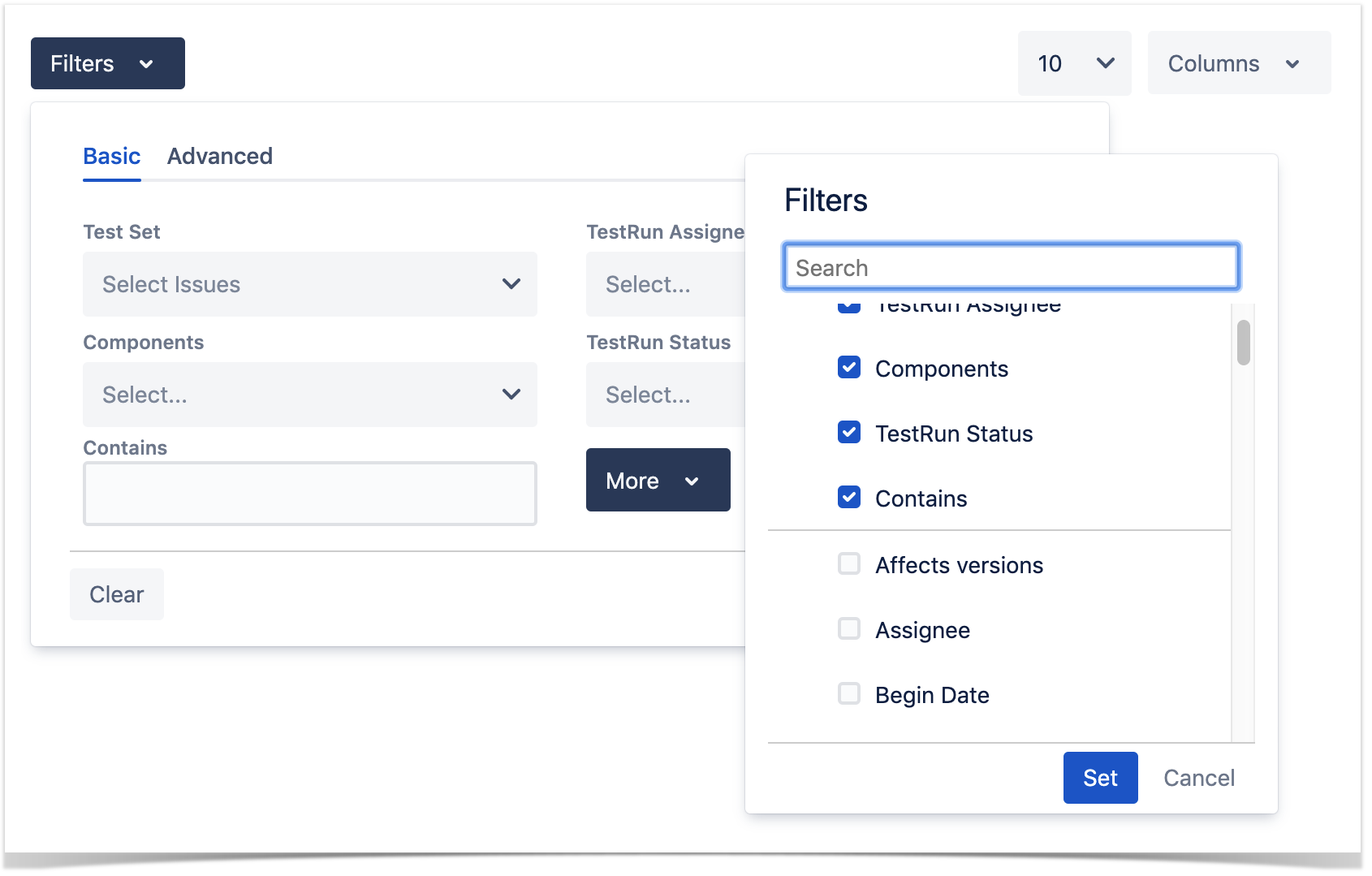

A filter section is present above the Test Runs table to allow you to filter Test Runs by Assignee, Status, Test Set, Components or open text. It is also possible to add other fields to the filter by clicking on the More button and selecting the wanted fields.

Test Runs Table

This table has all the Test Runs created for the Test execution issue. Each row represents a Test Run and contains a set of actions that can be performed on a Test Run.

You can configure the Columns, perform bulk operations and change rank of Test Runs.

When Xray is installed, the default columns are: Key, Summary, Test Type, and Status where the Status is fixed and cannot be removed.
